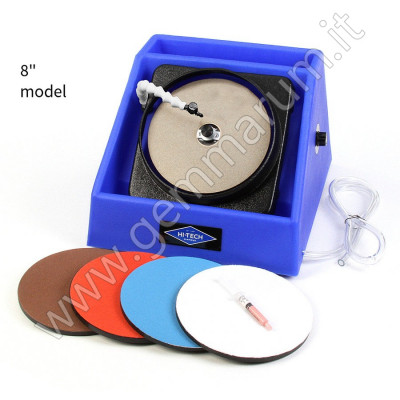

Slant Cabber (rock/mineral model) Ø200 mm

This machine is a flat lap machine : Grind, smooth and polish rocks and minerals to make free-form shapes and cabochons for necklaces, earrings, rings and other jewelry pieces. Create flats for larger pieces or on the backs of cabochons. It’s also well-suited for polishing a large variety of natural and synthetic gem material, enamels and metals.

This lap machine is manufactured with a 1/2" arbor and powered by a 1/4 hp, heavy-duty, ball bearing, DC motor. This motor is variable speed so you can work at whatever pace you desire, delivering speeds from 800 rpm to 3,400 rpm.

This portable machine can be used anywhere. Whether you're at home, in the shop or on the road, this quiet machine won't disturb others around you. It's lightweight, rustproof and impact-resistant, making it even easier to travel with.

The coolant reservoir, which holds about a quarter of water, prevents heat buildup while you work and removes dust particles so you don't inhale any harsh chemicals.

That quarter of water will give you two to three straight hours of work without refilling. The black splash guard keeps water off you so you don't get soaked while you work. Cleanup is as simple as it gets: Just remove the black spray shield, rinse with clean water and you're ready to work again.

The Lap machine comes with a rock/mineral accessory kit that allows you to work right out of the box. Our grinding and polishing process makes easy work of finishing quartz, agate, jasper, tourmaline, corundum, opal and a large variety of natural and synthetic gem material. This kit also works well with metals and enamels.

Rock/mineral accessory kit includes

• 180# electroplated diamond lap
• 325# brown diamond smoothing disc
• 600# red diamond smoothing disc
• 1,200# blue diamond smoothing disc
• Tech-11 polishing pad
• 2-gram 14,000# diamond paste syringe
• Four acrylic backing plates

Machine includes

• Water kit
• Allen wrench
• Complete written and visual instruction manual
• One-year manufacturer warranty

Slant Cabber specifications

• Machine dimensions: 13-1/2" L X 15" W X 11" H
• Machine weight: 12 lbs
• Machine housing construction: rustproof, cross-linked polyethylene
• Motor type: 1/4 hp variable speed direct drive motor with speeds ranging between 800 rpm - 3,400 rpm
• Motor voltage: 220V
