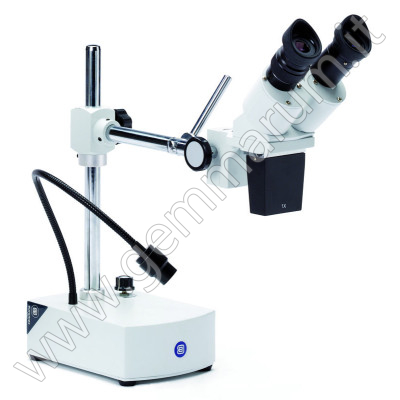

Euromex overhanging Microscope

Microscope with  overhanging stand

The EUROMEX stereomicroscopes  are instruments designed for laboratory, stone setters and industry applications.

The high depth of field and the extra large working distance are the main characteristics of this stereo microscope.

Their optical and mechanical qualities place them at the top of their category and the price/quality ratio is excellent.

Working Distance: 230 mm

A 44cm flexible arm LED light source

Dust cover

Additional lens with fixed 1x magnification - magnification 10x

Oculars: WF 10x/20 mm

SPECIFICATIONS

EYEPIECE(S)

Pair WF 10x/20 mm

HEAD

Binocular 45° inclined tube. Interpupillary distance adjustable between 55 and 75 mm

STAND

Stable overhanging heavy base stand with pillar

FOCUSING ADJUSTMENT

Coarse adjustment with tension control

ILLUMINATION

Incident 1 W LED illumination 44 cm on flexible arm. Intensity is adjustable

OBJECTIVES

1x fixed magnification objective, magnification 10x, field of view 20 mm. Working distance 230 mm.
